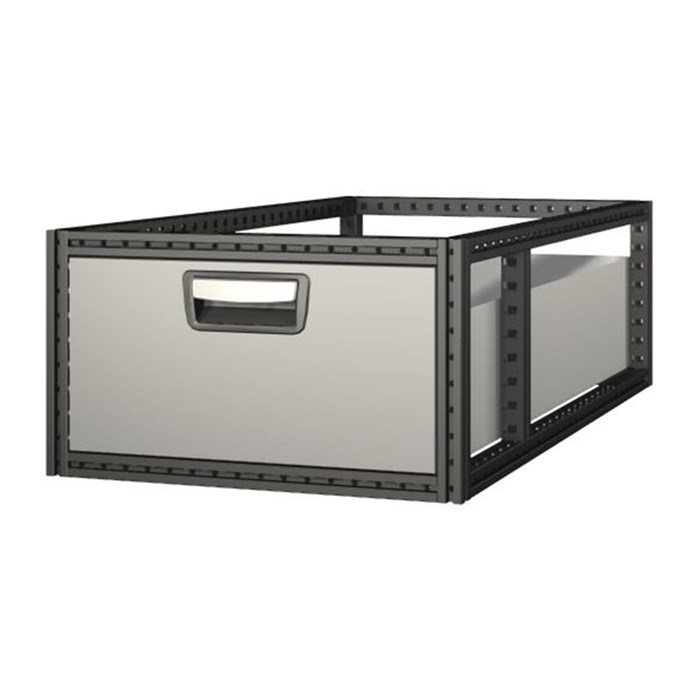

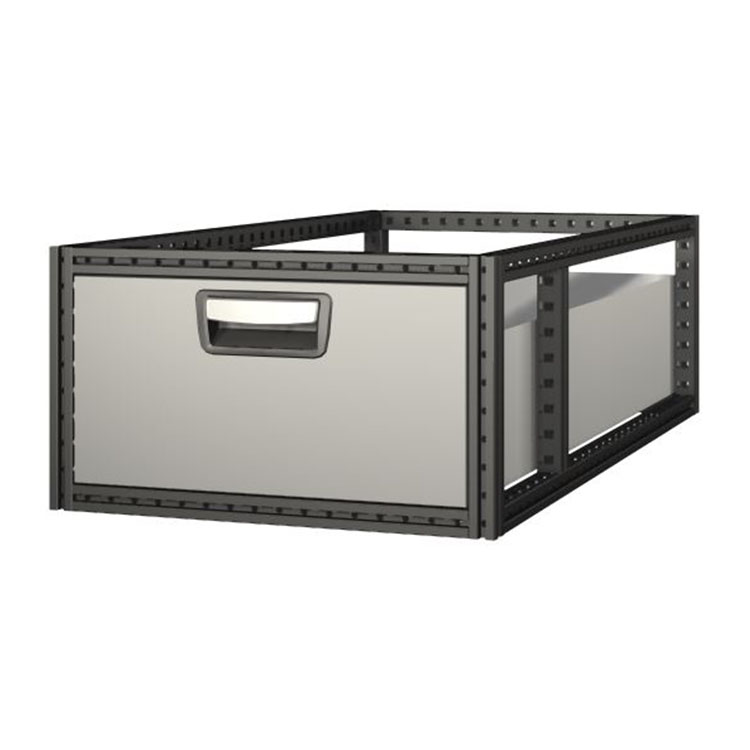

Extra-long drawer unit 010 486x810x270

12311-04

Width:
486
Depth:
810
Height:
270
NetWeight:
15.20

All dimensions are in mm and all weights in kg.

The extra-long drawer units have a frame from ultra-high strength steel and drawers from aluminium. The drawers are equipped with ball bearings as standard, and the mix from fixed and flexible bearings makes them both stable and easy to operate.

The drawers can be pulled out 80 percent and each drawer has a load capacity of 80 kg, alternatively 100 kg if a rubberised insert is used. Maximum load capacity per drawer unit is 200 kg.

All drawers have twin locking pins to keep the drawer in place while driving. Additionally all drawers are equipped with a crash restraint panel (CRP), a feature that prevents heavy loads from being propelled forward in the event of an accident.

Accessories such as the safety stop (for drawers 216/324 mm high) contributes to increased safety and dividers help create an efficient storage module that protects heavy and bulky cargos.

The drawer units can be placed under double floors or on the vechile floor.


Material: powder-coated ultra-high strength steel / aluminium
Colour: graphite grey / soft silver metallic / aluminium

For details on how to place an order, please see below or contact our team for more information.

  • Total: 7
  • High divider, extra-long drawer 486

  • Rubberised insert board 486x810

  • Cover panel 810x270

  • Rubber mat, extra-long drawer 486x810

  • Safety stop

  • Light for drawer unit/shelf 486

  • Modul-Lock (cam lock), low

  • Total: 7
  • Total: 1
  • Drawer front 486x216

  • Total: 1
